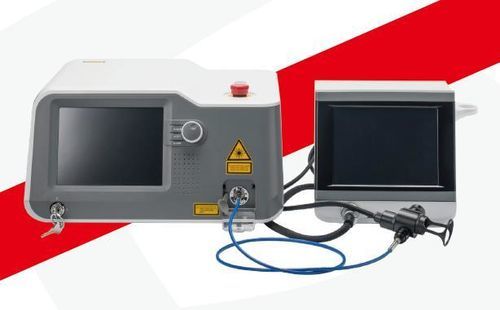

Laser per lesioni vascolari VELASII-8G

per lesioni pigmentateper trattamento delle cicatricitriborato di litio

Introduction
Use high power semiconductor at 808nm to “pump” in an optical sense a crystal that produces light of a wavelength of 1064 nm. Such light is in the turn casted upon a duplicating crystal (LBO triborate lithium) to “halve” the wavelength of 1064 nm and obtain green light of 532 nm. Such a novel system of splitting the value of the wavelength allows the operator to control the exit of green light using very short pulses.

Powerful and effective

• 3w / 4w / 5w / 8w peak power options
• Very short, intense pulses
• Effective treatments with protection of the epidermis
• Very stable and reliable with long life-time

Transportable and economic

• Easy-to-use design, intuitive menu
• Compact device, stable technology
• Transportation case for device and accessories
• Plug & play technology: no technician needed
• Low operating costs

Applications
Vascular Lesions
Spider Veins
Telangiectasia
Neovascularization
Rosacea
Venous Lake
PWS
Senile, Stellate and Cherry Angiomas

Pigmented Lesions
Lentigines
Dermatosis Papulosis Nigra
Freckles
Hyperkeratotic Lesions
Civette Poikiloderma
Red Stretch Marks

Cutaneous Lesions
Scars
Verrucas
Keratoses
Inflammatory Acne

Caractéristiques / spécifications techniques

• Pumping semiconductor source: 808 nm
• Primary generated wavelength: 1064 nm (via pumped crystal)
• Frequency-doubling crystal: LBO (lithium triborate) to produce 532 nm green light
• Control of green-light output via very short pulse operation
• Peak power selectable: 3 W, 4 W, 5 W, 8 W
• Design focused on epidermal protection during treatment
• Portable and compact chassis with transportation case for device and accessories
• User interface: intuitive menu, plug & play operation (no technician required for startup)
• Low operating and maintenance costs; long lifetime and high stability
