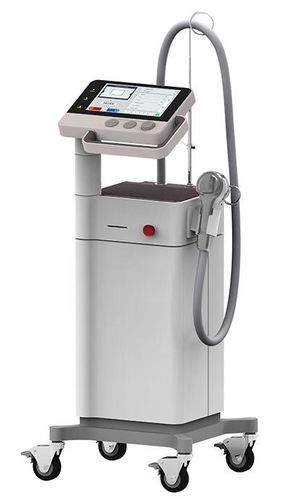

Laser per medicina estetica BeautyScan™

Erbio:vetrosu carrello

Overview

The BeautyScan™ is the high-end laser system to perform fractional non-ablative skin resurfacing. It utilizes state-of-the-art technology and a 1550nm fiber Er-Glass laser module to achieve the best results in non-invasive treatment of scars, stretch marks and wrinkles. The BeautyScan™ transmits 1550nm laser energy into the skin to produce thousands of tiny microthermal zones and create microscopic columns of thermal injury. It stimulates the body’s own wound healing response to produce new collagen and refresh the outer layer of the skin (epidermis).

Clinical Applications

• Acne Scars
• Stretch marks
• Other scars (Burn, Surgical and other scars)
• Wrinkle removal
• Aging wrinkles
• Rough skin
• Coarse pore

Features

• Non-ablative & painless & bloodless solution
• Targeted treatment without side effects
• Short treatment times & quick recovery time
• Comfort and excellent satisfaction rate reported by patients

Desktop optional
Optional desktop configuration is available.

Additional benefits
Stable: The BeautyScan™ adopts 1550nm fiber Er-Glass laser module technology to provide a stable wavelength, uniform spot size and accurate performance during treatment.
Excellent ease of use: User friendly software and intelligent design assist users to choose the optimal treatment settings.
Flexibility and Versatility: Diversified scanning modes and spot sizes meet different treatment needs.
Cost Effective: No costly consumable, no costly maintenance.

Technical specifications (table)
Laser type : Fiber Er-Glass laser
Wavelength : 1550nm ±1nm
Output power : 1-10W
Operation mode : Fractional
Figure filling : 9% – 100%
Treatment Surface Area : 1mm-16mm Adjust
Spot Size : 100um
Pulse width : Ton: 1ms-50ms Toff: 1ms-5000ms
Pulse repetition rate : 0Hz – 500Hz
Application systems : Scanner
Transmission system : fibers and collimator
Aiming beam : Diode laser of 635nm, power＜5mW, adjustable brightness.
Operation interface : 10.2’ Color LCD touch screen
Laser Class : 4
Safety classification : ClassⅠ Type B
Cooling : Air
Dimensions : 400(W)*400(L)*950(H)mm
Weight : 35kg
Waterproof level : IPX1
Footswitch Waterproof level : IPX8
Safety Compliance : IEC

Caractéristiques / spécifications techniques

• Laser type: Fiber Er-Glass laser
• Wavelength: 1550nm ±1nm
• Output power: 1-10W
• Operation mode: Fractional
• Figure filling: 9% – 100%
• Treatment Surface Area: 1mm-16mm adjustable
• Spot Size: 100um
• Pulse width: Ton: 1ms-50ms; Toff: 1ms-5000ms
• Pulse repetition rate: 0Hz – 500Hz
• Application systems: Scanner
• Transmission system: fibers and collimator
• Aiming beam: Diode laser 635nm, power <5mW, adjustable brightness
• Operation interface: 10.2’ Color LCD touch screen
• Laser Class: 4
• Safety classification: ClassⅠ Type B
• Cooling: Air
• Dimensions: 400(W) * 400(L) * 950(H) mm
• Weight: 35kg
• Waterproof level: IPX1
• Footswitch Waterproof level: IPX8
• Safety Compliance: IEC
