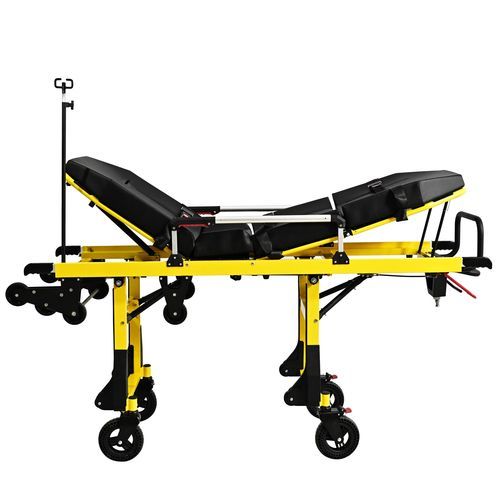

Barella con carrello da trasporto YHR-A12

di emergenzamanualepieghevole

Product Overview - The main material is high-strength aluminum alloy, hardened and surface treated. - The overall height of the stretcher is adjustable to ≥3 levels, convenient for cardiopulmonary resuscitation (CPR) operations. - The front leg height is adjustable to 2 levels, the rear leg height is adjustable to 3 levels. - The backrest is controlled by a pneumatic spring to adjust the angle; the backrest angle is adjustable from 0 to 88°; the legs are mechanically supported and can be positioned at 0° or 15°. - There are three wheels in the loading part, so the boarding height has a wider range. - The safety bar is made of aluminum and plastic; the stretcher is equipped with two safety belts. - The front universal wheels use an elastic lock for locking, can be locked for straight movement or universal mode as needed; rear universal wheels with brake. - Only one healthcare operator is needed to push the stretcher into the ambulance. - The locking mechanism is controlled by handles, the stretcher must be fixed with the device during loading into the ambulance! - Loading height: 580-690 mm; wheel size: Φ200 mm. - The stretcher mattress is made of concave-shaped PVC material, thickness: 10 cm. The mattress features high-frequency seamless welding and is waterproof, easy to clean. - Equipped with a two-level IV stand; stretcher fixing device. - Optional accessories: oxygen cylinder holder. Technical Specifications - Name: Ambulance stretcher - Model: YHR-A12 - Features: Overall height adjustable - Four universal wheels. The front wheels can be locked for directional movement - Height adjustable for CPR - Height of three wheels: 585 mm, 640 mm, 685 mm - Adjustable side rail, height: 17.5 cm - Two safety belts - Simultaneous three-point locking device - Four retractable handles at both ends - Material: High-strength aluminum alloy and surface treated - Mattress: U-shaped waterproof upper mattress, thickness 10 cm - Wheels: φ200 mm - High position: 197x57.5x101 cm - Low position: 197x57.5x47 cm - Backrest angle: 0-90° - Leg angle: 0° or 15° - N.W.: 51.5 kg - Load capacity: Max. 200 kg (440 LBS) - Packing: 207x60x47 cm; 1 set/CTN - G.W.: 62 kg
