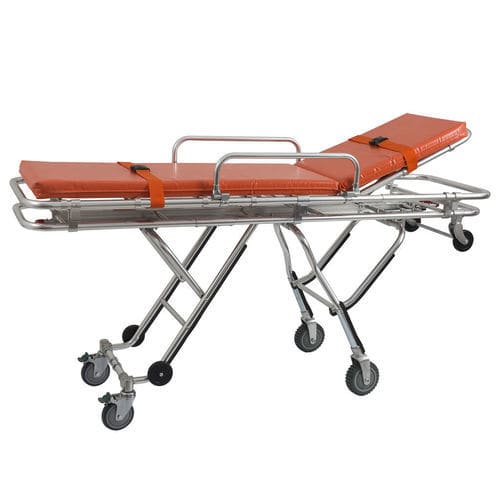

Barella con carrello per ambulanze YHR-A4

meccanicapieghevolead altezza regolabile

Product Overview - The main material is high-strength aluminum alloy, hardened and surface treated. - The mattress is made of wear-resistant mesh fabric, 6 cm thick, single-use welded, flame-retardant, and waterproof. - Equipped with adjustable aluminum alloy side rails and two safety belts. - Equipped with a two-stage adjustable IV stand, with a maximum adjustable length of 75 cm. - Intelligent structure with a mechanical folding leg design, allowing for various position adjustments; height adjustable in 4 levels. The folding leg mechanism can be controlled by left and right handles, and only one healthcare operator is needed to push the stretcher into the ambulance. - The upper frame of the YHR-A4 type is not removable, while the upper frame of the YHR-A5 type is removable. - Loading height is 64 cm. Wheel size: φ125 mm. Technical Specifications - Name: Ambulance stretcher - Model: YHR-A4 - Material: Aluminum alloy - High Position (L*W*H): 196×55×98 cm - Low Position (L*W*H): 196×55×34 cm - Backrest: 0-75° - Load capacity: Max. 160 kg (350 LBS) - N.W.: 38.2 kg - Packing: 198×62×38 cm; 1 pc/CTN - G.W.: 44 kg Features / Technical Specifications - Main material: High-strength aluminum alloy - Mattress: 6 cm thick, flame-retardant, waterproof, wear-resistant mesh fabric - Adjustable side rails and two safety belts - Two-stage adjustable IV stand (max 75 cm) - Folding leg mechanism, 4-level height adjustment - Single operator loading - Non-removable upper frame (YHR-A4), removable for YHR-A5 - Loading height: 64 cm - Wheel size: 125 mm diameter - High position: 196×55×98 cm - Low position: 196×55×34 cm - Backrest: 0-75° - Max load: 160 kg (350 lbs) - Net weight: 38.2 kg - Gross weight: 44 kg - Packing: 198×62×38 cm; 1 pc/CTN
