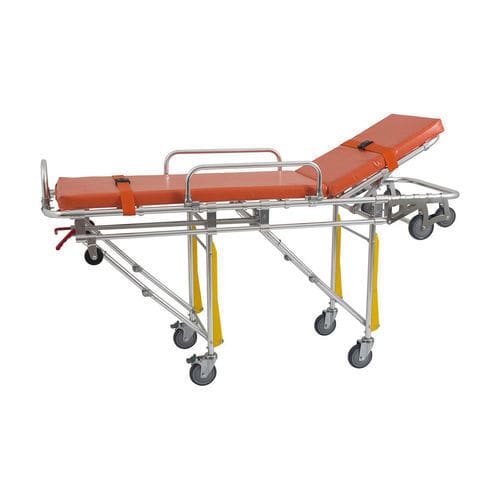

Barella con carrello per ambulanze YHR-A1

manualepieghevolead altezza regolabile

Overview - The main material is high-strength aluminum alloy. - The backrest angle is adjustable. - The mattress is made of wear-resistant mesh fabric, 6 cm thick, single-use welded, fireproof, and waterproof. - Equipped with adjustable aluminum alloy side rails and two safety belts. - Equipped with a two-stage adjustable IV pole, maximum adjustable length is 75 cm. - There are two wheels, large and small, at the top of the loading surface, used for different heights of the ambulance platform; loading heights: 67 cm, 65 cm, 64 cm. - Wheel size: φ125 mm. Technical Specifications (YHR-A1) - Model: YHR-A1 - Features: High-low position, PVC mattress with seamless welding and waterproof, two straps, foldable side rails, safety lever to control folding legs, two-stage IV pole, vehicle locking device included - Material: Durable aluminum alloy - Dimensions: 190×55×(27-93)cm - Backrest: 0-75 degrees - Capacity: Max. 160kg (350 LBS) - Net Weight: 37KG - Packing: 195×65×28cm; 1pc/CTN - Gross Weight: 43kg Technical Specifications (YHR-A1-2) - Model: YHR-A1-2 - Features: High-low position, 5 cm mattress, two straps, two-stage IV pole, vehicle locking device included, removable double upper layer, tiltable from both ends - Material: Durable aluminum alloy - Dimensions: 193×55×(36-98)cm - Backrest: 0-75 degrees - Capacity: Max. 160kg (350 LBS) - Net Weight: 39KG - Packing: 198×65×38cm; 1pc/CTN - Gross Weight: 45kg Technical Features / Specifications - Main material: High-strength aluminum alloy - Adjustable backrest angle - Wear-resistant mesh mattress, 6 cm thick, fireproof and waterproof - Adjustable aluminum alloy side rails - Two safety belts - Two-stage adjustable IV pole (max 75 cm) - Two wheels (large and small) for different ambulance platform heights (67 cm, 65 cm, 64 cm) - Wheel size: φ125 mm - Model YHR-A1: 190×55×(27-93)cm, 37kg net, 43kg gross, 160kg capacity - Model YHR-A1-2: 193×55×(36-98)cm, 39kg net, 45kg gross, 160kg capacity, removable double upper layer, tiltable from both ends
