Laser chirurgico Gbox

diododa tavolo

Overview

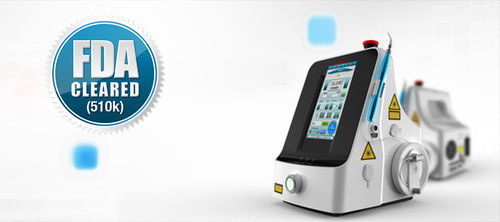

The new Gbox portable surgery diode laser system is a compact, portable medical diode laser platform designed for multiple clinical specialties. It supports continuous and pulsed operation, and can work with contact or non-contact handpieces.

Wavelengths & output

• Available wavelengths: 450 nm, 532 nm, 810 nm, 980 nm, 1064 nm, 1470 nm, 1940 nm (various configurations/options)
• Maximum peak output power: up to 30 W
• Operates in continuous and pulsed modes

Main features

• User-friendly interface with advanced software and preset protocols; protocols can be renamed, parameters changed and saved by the operator
• Built-in power meter and output power calibration at the end of fiber; output power test available in software
• Adjustable aiming (pilot) beam, background light and sound
• 20 KHz top-pulsation for quick and tissue-protecting performance
• 8-inch touch-screen display
• Highly integrated, modular design for easier maintenance and lower cost
• Compact metal portable carry case with coded lock for easy transportation
• Comprehensive standard accessories supplied for clinic use

Accessories & handpieces

• Flexible fibers and fiber holders (two types supplied to keep fiber clean and convenient to use)
• Handpieces in various shapes and lengths for different applications (including dedicated ENT and lipolysis handpieces)
• Micro-endoscope compatible
• PM3 therapy handpiece for pain relief, accelerated healing and decreased inflammation
• Lipolysis handpiece: cannula set with five lengths, each re-sterilizable up to ~40 times
• ENT handpiece set: includes multiple (7) ENT handpieces for different applications

Applications

• Dentistry
• Endovenous laser treatment (EVLT)
• ENT procedures
• PLDD
• Lipolysis / liposuction
• DEEP Tissue Therapy
• Veterinary procedures

Quality & service

• Manufacturer indicates regulatory approval (FDA mentioned)
• Reliable after-sale service and training for distributors
• Positioned as high quality and cost-effective using integrated manufacturing resources

Design & portability

• Compact body case dimensions: 245 mm (L) × 215 mm (W) × 315 mm (H)
• Light weight: approximately 5 kg
• Fiber length: standard 3 m fibers (users can sterilize fibers for reuse; example claim: one 3 m fiber can be used for about 200 cases if sterilized by user)

Full accessories for clinic
Comprehensive range of application accessories provided as standard so end users can operate the laser directly with supplied items.

Caractéristiques / spécifications techniques

• Model / Series name: Gbox
• Wavelength options: 450 nm, 532 nm, 810 nm, 980 nm, 1064 nm, 1470 nm, 1940 nm
• Maximum peak output power: up to 30 W
• Operating modes: continuous and pulsed
• Handpiece modes: contact and non-contact
• Pulse capability: up to 20 KHz top-pulsation
• Display: 8-inch touch screen
• Size (L×W×H): 245 × 215 × 315 mm
• Weight: ~5 kg
• Fiber length (standard): 3 m
• Accessories: flexible fiber, multiple handpieces (ENT, lipolysis, PM3 therapy, etc.), micro-endoscope, fiber holders
• Built-in features: power meter, software power test, output power calibration at fiber end, adjustable pilot light
• Design: modular, highly integrated for easy maintenance
• Packaging: metal portable carry case with coded lock
