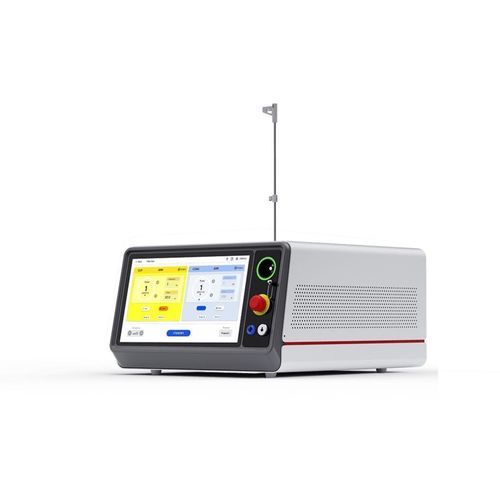

Laser veterinario per chirurgia veterinaria Thulase Vet

a diodoolmioda tavolo

Overview
Portable Veterinary Thulium Laser Lithotripsy System. Precision soft tissue surgery. Veterinary lithotripsy procedures. Advanced clinical surgical use.

Why Thulium Laser
Advanced Technology for Veterinary Surgery. Thulium laser technology provides excellent balance between cutting precision and coagulation, enabling advanced veterinary surgical applications with minimal thermal impact. This platform is designed for partners targeting high-end veterinary markets.

Distributor Advantages

• Premium product positioning
• Strong differentiation from standard diode systems
• Higher margin potential
• Suitable for advanced and emerging markets

Fiber
Six different fiber sizes are available to accommodate various clinical applications.

• Fiber Size (Core Diameter): 200 μm
• 272 μm
• 365 μm
• 550 μm
• 800 μm
• 1000 μm

Technical table (parameters)
Parameter — ThulioDual Vet (Thu-Vet-300 / Thu-Vet-400 / Thu-Vet-600)
Order Model — Thu-Vet-300 — Thu-Vet-400 — Thu-Vet-600
Wavelength — 1940nm±5nm — 1940nm±5nm — 1940nm±5nm
Maximum Power — 300W — 400W — 600W
Pilot Beam — 532nm/635nm — 532nm/635nm — 532nm/635nm
Operation Mode — CW/Pulse — CW/Pulse — CW/Pulse
Energy/Pulse — Up to 3J — Up to 4J — Up to 4J
Repetition Rate — 1-3000hz — 1-4000hz — 1-6000hz
Dimensions — 409(W)*518(L)*254(H) mm — 409(W)*518(L)*254(H) mm — 450(W)*536(L)*271(H) mm
Weight — 30Kg — 33Kg — 42Kg

Applications & features
Designed for precision soft tissue surgery and veterinary lithotripsy (stone powdering). Portable platform aimed at advanced clinical surgical use. Multiple fiber sizes to suit varied clinical procedures.

Caractéristiques / spécifications techniques

• Marque: GIGAAMEDICAL
• Famille: Thulium fiber laser (1940 nm)
• Modèles disponibles: Thu-Vet-300, Thu-Vet-400, Thu-Vet-600
• Longueur d'onde: 1940 nm ±5 nm
• Puissance maximale: 300 W / 400 W / 600 W (selon modèle)
• Faisceau pilote: 532 nm / 635 nm
• Mode d'opération: CW (continu) / Pulse
• Énergie par impulsion: jusqu'à 3 J (Thu-Vet-300), jusqu'à 4 J (autres modèles)
• Taux de répétition: 1–3000 Hz / 1–4000 Hz / 1–6000 Hz (selon modèle)
• Dimensions (selon modèle): 409×518×254 mm ; 450×536×271 mm
• Poids (selon modèle): ≈30 kg, 33 kg, 42 kg
• Fibres disponibles (diamètre du cœur): 200 μm, 272 μm, 365 μm, 550 μm, 800 μm, 1000 μm
• Principales utilisations cliniques: lithotripsie vétérinaire, chirurgie des tissus mous, applications chirurgicales avancées
