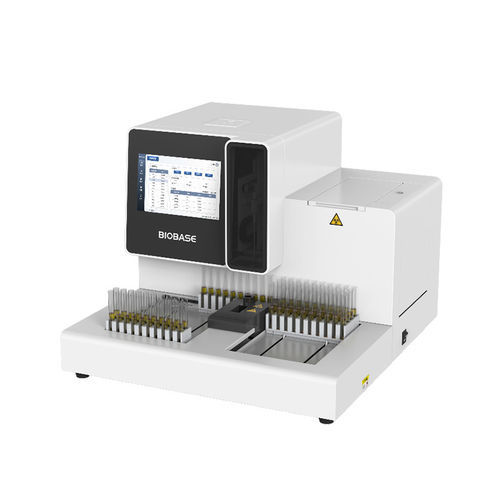

Analizzatore di urina automatico BH-QNY01

da bancocon touch screencon lettore di codici a barre

Introduction: The automatic urine analyzer is an automated device for determining certain chemical components in urine. It is an important tool for automated urine testing in medical laboratories. It features easy operation and fast performance. Under computer control, the device collects and analyzes color information from various reagent pads on the test strip conveyor, then converts a series of signals to output the chemical composition content in urine.Features:10.1-inch integrated touchscreen and built-in thermal printer.Sample delivery, injection, dropping, analysis, and report output are all performed automatically by the device.High-precision sample dispenser ensures comprehensive reaction and improves test result accuracy.Automatic strip selection chamber accommodates 600 test strips at the same time.Supports closed-hole analysis, greatly improving biosafety.Technical Specifications:ModelBH-QNY01BH-QNY02Sequential FunctionNoYesPrinciplePhotoelectric colorimetric measurementThroughput240 tests/hourScreen10.1-inch touchscreenMemoryCan store more than 1,000,000 test reportsPrinterBuilt-in thermal printerInterfaceUSB, RS232, network interfaceBarcode ScannerOptionalApplication RangeTest strips: 9, 10, 11, 14 parametersTest Items9-parameter strips: GLU, BIL, KET, pH, PRO, URO, NIT, LEU, SG10-parameter strips: GLU, BIL, KET, SG, pH, PRO, URO, NIT, LEU, SG11-parameter strips: GLU, BIL, KET, SG, pH, PRO, URO, NIT, LEU, SG, VC14-parameter strips: GLU, BIL, KET, SG, pH, PRO, URO, NIT, LEU, SG, VC, CRE, CA, MCASample Rack Capacity100 samples (10 racks of test tubes)Reagent Tank Capacity600 piecesData RetrievalSearchable by actual date, date range, urine sample number, name, barcode, etc.Automatic SensingDetection and analysis are performed automatically after sample placementCalibration FunctionYesPower130 WPower SupplyAC 100~240V, 50/60HzExternal Dimensions (W*D*H)662*730*520 mm662*780*520 mmNet Weight48 kg51.5 kgPacking Size (W*D*H)805*880*600 mm; 430*340*590 mm805*880*600 mm; 430*340*590 mmGross Weight76.5 kg; 15 kg80 kg; 15 kgNote: The device comes standard with 100 test strips.Brand: BIOBASEOrigin: ChinaDelivery time: Within 7 daysSupply capacity: Direct factory supplyTechnical Features / Specifications:Model: BH-QNY01, BH-QNY02Sequential Function: No (BH-QNY01), Yes (BH-QNY02)Measurement Principle: Photoelectric colorimetryThroughput: 240 tests/hourScreen: 10.1-inch touchscreenMemory: >1,000,000 test reportsPrinter: Built-in thermal printerInterfaces: USB, RS232, networkBarcode Scanner: OptionalApplication: 9, 10, 11, 14-parameter test stripsSample Rack Capacity: 100 samplesReagent Tank Capacity: 600 piecesData Retrieval: By date, sample number, name, barcode, etc.Automatic Sensing: YesCalibration: YesPower: 130 WPower Supply: AC 100~240V, 50/60HzDimensions: 662*730*520 mm (BH-QNY01), 662*780*520 mm (BH-QNY02)Net Weight: 48 kg (BH-QNY01), 51.5 kg (BH-QNY02)Packing Size: 805*880*600 mm; 430*340*590 mmGross Weight: 76.5 kg; 15 kg (BH-QNY01), 80 kg; 15 kg (BH-QNY02)
