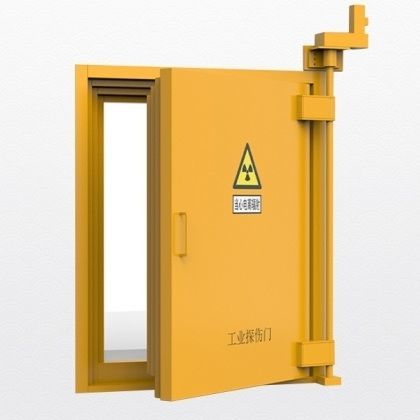

Porta di radioprotezione

con schermaturacontro i raggi Xermetica

Product Introduction
The shielding design should fully consider the direction and range of exposure to the useful radiation beam, the operational load of the device, and outdoor conditions. The walls in the direction of the useful beam projection should be designed according to the primary shielding requirements, while those in other directions should be designed according to the requirements for leakage and scattered radiation shielding.

Product Performance

• The door surface can be treated with sandblasting and fluorocarbon coating, and the motor shall meet the IP54 dustproof and waterproof rating.
• Door Integrity: The shielding materials shall be continuous and intact. The lead sheet inside the door body shall be tightly fitted to the frame to prevent radiation leakage caused by looseness or gaps.
• Process: 30mm Pb + 120mm boron-containing polyethylene paraffin.
• Material: Door panel: 1.0 mm thick; Door body: 10 mm Q235 steel plate.
• Motor: Adopts a brand-name motor, equipped with high-load-bearing rails and cover plates.
• Protection: Equipped with a special anti-fingerprint mirror finish belt for radiation protection.
• Color: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spraying sheet.
• Frame Requirement: The frame is supported by No.24 channel steel.

Technical Parameters
Technical parameters and dimension/assembly illustrations are provided in the product technical images on the product page.

Application Fields

• Department of Radiology: Comprehensive imaging diagnosis and interventional therapy using X-rays, gamma rays and other radiation to image internal structures for anatomical and pathological evaluation.
• Department of Radiation Oncology: Localized therapeutic modality using ionizing radiation (X-rays, electron beams, proton beams, radioactive isotopes) for cancer treatment.
• Department of Nuclear Medicine: Uses nuclear science technologies for disease diagnosis and treatment, integrating imaging, therapy, research and teaching.

Caractéristiques / spécifications techniques

• Shielding composition: 30 mm lead (Pb) + 120 mm boron-containing polyethylene paraffin.
• Door panel thickness: 1.0 mm.
• Door body material: 10 mm Q235 steel plate.
• Surface treatment: sandblasting and fluorocarbon coating.
• Motor rating: meets IP54 dustproof and waterproof standard; uses brand-name motor.
• Mechanics: high-load-bearing rails and protective cover plates.
• Sealing/Integrity: lead sheet tightly fitted to frame to avoid gaps and radiation leakage.
• Protection finish: special anti-fingerprint mirror finish belt.
• Color/finish options: 304 anti-fingerprint stainless steel or AkzoNobel electrostatic spray finish.
• Frame support: No.24 channel steel.
