Piegatrice per lenzuola a pavimento KS-F series

con sistema di impilamento

Overview
Automatic feeders, folders and stackers that remove the manual handling at the end of the line, where most plants lose their throughput.

Key features

• Automatic feeding
• Cross and lateral folding
• Single or double stacking
• Integrates with KS-FI ironers

Machines in this range

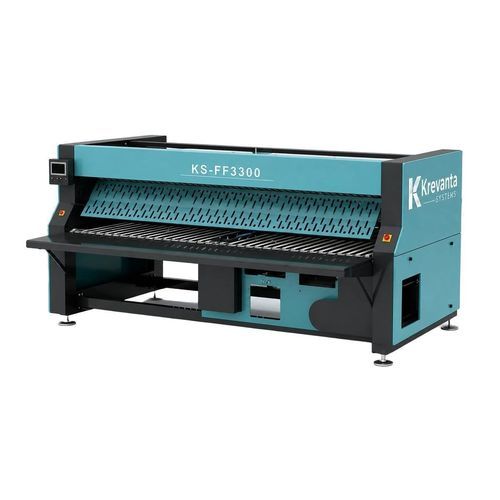

KS-FF3300 Flatwork Folding Machine

• Model: KS-FF3300
• Working width: 3,300 mm
• Maximum linen size: 3,300–4,500 mm
• Number of folding channels: 4
• Maximum folding layers: 5
• Compatible linen: bed sheets, duvet covers, pillowcases, table linen, flatwork textiles
• Conveyor speed: 10–60 m/min
• Main motor: 1.5 kW / 4P
• Drive motors: 1 × 0.75 kW / 4P, 1 × 0.55 kW / 4P
• Main motor inverter: 1 × 1.5 kW
• Drive motor inverters: 2 × 0.8 kW
• Total power input: 3.1 kW
• Voltage: 3-phase AC 380 V / 50 Hz
• Conductor section: 4 × 2.5 mm²
• Air inlet: DN10
• Air pressure: 0.6 MPa
• Air consumption: 400 L/h
• Machine dimensions (L × W × H): 4,500 × 2,950 × 1,800 mm
• Machine weight: 2,450 kg
• Features: high-speed automatic folding, four independent folding channels, up to five folding layers, variable conveyor speed, PLC-controlled folding system, frequency-controlled drive motors, pneumatic folding mechanism, compatible with optional automatic stackers (KS-FFA1/KS-FFA2), continuous heavy-duty operation, industrial-grade construction, easy maintenance

KS-FFA1 Automatic Single Stacker

• Model: KS-FFA1
• Machine type: automatic single stacker (optional module for KS-FF3300)
• Stacking quantity: 0–5 pieces
• Main motor power: 1 × 0.4 kW / 4P
• Total machine input: 0.4 kW
• Voltage system: 3-phase AC 380 V / 50 Hz
• Conductor section: 4 × 2.5 mm²
• Air inlet: DN10
• Air pressure: 0.6 MPa
• Air consumption: 50 L/h
• Machine dimensions (L × W × H): 3,450 × 850 × 900 mm
• Machine weight: 280 kg
• Features: automatic linen stacking, PLC-controlled operation, pneumatic stacking mechanism, industrial-grade construction, continuous heavy-duty operation, reduced manual handling, compact single-stack configuration

KS-FFA2 Automatic Double Stacker

• Model: KS-FFA2
• Machine type: automatic double stacker (optional module for KS-FF3300)
• Stacking quantity: 0–5 pieces
• Main motor power: 2 × 0.4 kW / 4P
• Total machine input: 0.8 kW
• Voltage system: 3-phase AC 380 V / 50 Hz
• Conductor section: 4 × 2.5 mm²
• Air inlet: DN10
• Air pressure: 0.6 MPa
• Air consumption: 100 L/h
• Machine dimensions (L × W × H): 3,450 × 1,600 × 900 mm
• Machine weight: 530 kg
• Features: dual stacking stations, automatic linen sorting, PLC-controlled operation, pneumatic stacking mechanism, continuous heavy-duty operation, increased productivity

KS-FM3300 Automatic Feeding Machine

• Model: KS-FM3300
• Machine type: automatic feeding machine
• Maximum feeding width: 3,300 mm
• Feeding speed: 10–50 m/min
• Feeding motor power: 0.37 kW
• Drive motor power: 0.75 kW
• Fan motor power: 7.1 kW
• Power supply: 380 V / 3 phase / 50 Hz
• Machine dimensions (L × W × H): 4,450 × 1,200 × 1,550 mm
• Machine weight: 1,200 kg
• Features: vacuum-assisted linen feeding, perforated wool conveyor belt, variable feeding speed control, LED inspection lighting, efficient air suction system, smooth accurate linen alignment, easy integration with flatwork ironers

Comparison table
Model | Capacity | Speed | Connected load
KS-FF3300 | 3,300 mm | 10–60 m/min | 3.1 kW
KS-FFA1 | 0–5 Pieces | Not applicable | 1 × 0.4 kW / 4P
KS-FFA2 | 0–5 Pieces | Not applicable | 2 × 0.4 kW / 4P
KS-FM3300 | 3,300 mm | 10–50 m/min | 8.2 kW (3 motors)

Applications

• Hospital laundries
• Hotel and resort laundries
• Commercial laundry plants
• Textile rental services
• Linen processing facilities
• Industrial laundry operations

Caractéristiques / spécifications techniques

• Series: KS-FF, KS-FFA and KS-FM
• Typical supply voltage: 3-phase AC 380 V / 50 Hz (models vary)
• Air supply: DN10, typical operating pressure 0.6 MPa
• Power range per machine: from 0.37 kW (feeding motor) to 8.2 kW (KS-FM3300 total)
• Conductor section typically specified as 4 × 2.5 mm²
• Conveyor/feeding speeds: 10–50 / 10–60 m/min depending on model
• Designed for continuous heavy-duty industrial operation and easy integration between feeders, folders and stackers
