Viscosimetro rotativo CBC ROTAVISC lo-vi Package

da laboratorio

Overview
The viscosity of most liquids depends on the temperature. To obtain reliable measurement results, accurate temperature control is crucial. The CBC ROTAVISC lo-vi Package is the perfect solution for precise viscosity measurement of temperature-dependent samples in the laboratory.

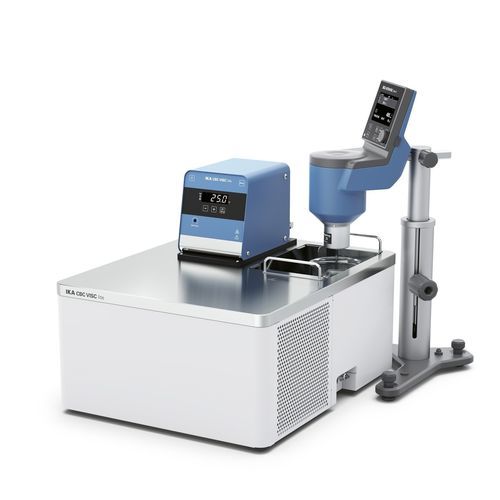

The ready-to-connect package combines the ROTAVISC lo-vi rotational viscometer with the CBC VISC lite heating and cooling bath circulator. The sample is measured directly in the heating bath under controlled conditions.

ROTAVISC lo-vi is a high-performance rotational viscometer for applications in a measuring range from 1 - 6,000,000 mPas.

The CBC VISC lite heating and cooling bath circulator was specially developed for use with IKA viscometers. It covers a temperature range from -25 °C to 125 °C and offers space for two standard beakers (600 ml). This allows a second sample to be pre-tempered during the measurement. Equipped with natural refrigerant R290, the CBC VISC lite is a sustainable and environmentally friendly alternative.

YOUR BENEFITS

• Save time: A second beaker (600 ml) can be pre-tempered during the measurement.
• Perfect results: Optimized water flow management in the insulated bath for fast and precise temperature control.
• Improved ecological footprint: Equipped with the environmentally friendly natural refrigerant R290.
• Flexible application: Thanks to the external pump connection, CBC VISC lite can also be used for heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakers.
• Easy to maintain: The easily removable and cleanable air filter guarantees optimum performance.
• Perfect compatibility and automation: ROTAVISC and CBC VISC lite are compatible with the labworldsoft® laboratory software, enabling easy automation, control and documentation of measurement results.

Scope of delivery

• ROTAVISC lo-vi control S000
• ROTASTAND
• CBC VISC lite
• SP set-1
• PT 100.8

Caractéristiques / spécifications techniques

• Measuring range (ROTAVISC lo-vi): 1 - 6,000,000 mPas
• Temperature range (CBC VISC lite): -25 °C to 125 °C
• Bath capacity / beaker size: space for two standard beakers (600 ml)
• Measurement: sample measured directly in the insulated heating/cooling bath under controlled conditions
• Refrigerant: natural refrigerant R290
• Compatibility: Compatible with labworldsoft® laboratory software for automation, control and documentation
• Flexible use: external pump connection for heating standard DIN vessels with ELVAS spindles or double-walled beakers
• Included items (scope of delivery): ROTAVISC lo-vi control S000, ROTASTAND, CBC VISC lite, SP set-1, PT 100.8
• Ident. No. / SKU: 0010014045
