Laser chirurgico CHEESE PLUS

odontoiatricoper biostimolazione dentaleper biostimolazione ortopedica

Overview

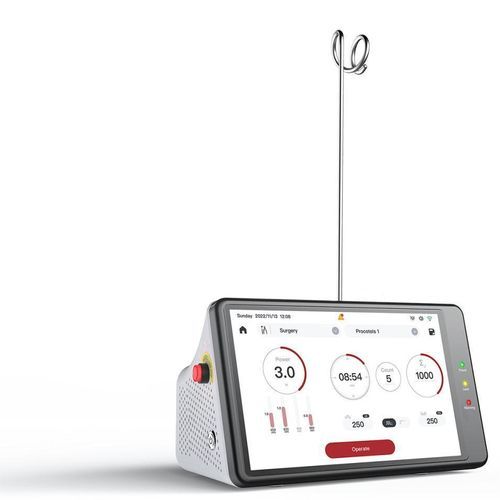

CHEESE PLUS is a mini multi-wavelength medical laser system integrating multiple wavelengths (450nm, 650nm, 810nm, 1064nm). FDA 510(k) Number K230047.

Applications

• Dentistry: Multiple wavelengths support soft tissue surgery, biostimulation, deep tissue and bone-related dental procedures (root canal, pulpitis, oral surgery).
• Therapy / Rehabilitation & Pain Management: Wavelengths used for biostimulation, inflammation reduction, pain relief and treatment of musculoskeletal injuries, tendon/ligament injuries, spinal disorders, fractures and neurological therapy applications.
• Veterinary: Uses include rehabilitation & pain management, soft tissue and minimally invasive surgery, endoscopic and lithotripsy procedures, equine rehabilitation and veterinary dentistry.

Wavelength-specific uses

• 450nm: Suitable for certain soft tissue surgeries (excision, incision), reduces bleeding and tissue damage, accelerates healing and reduces patient discomfort.
• 650nm (also listed as 635nm in tables): Used for biostimulation and pain treatment; promotes healing and tissue regeneration, alleviates inflammation and pain.
• 810nm: Penetrates deeper for deep tissue surgery (root canal treatment, oral surgery), minimizes surrounding tissue damage and bleeding, shortens surgery and recovery time.
• 980nm / 980nm/1064nm / 1064nm: Near-infrared wavelengths for deep tissue and bone treatments (pulpitis, bone tissue surgery, lumbar muscle strain, knee joint pain, arthritis); provide deep penetration, inflammation and pain relief, and promote healing.

Technical Specifications - Dentistry (summary)
Parameter — CP18G / CP13G / CP23G
Order Model — CP18G ; CP13G ; CP23G
Wavelength — 635nm+445nm+810nm ; 635nm+445nm+1064nm ; 635nm+445nm+810nm+1064nm
Maximum Power — 200mW + 3W + 15W ; 200mW + 3W + 10W ; 500mW + 3W + 10W + 10W
Pilot Beam — 532nm ; 532nm ; 532nm
Operation Mode — CW, Repeat Pulse ; CW, Repeat Pulse ; CW, Repeat Pulse
Pulse Duration — 10μs – 3s ; 10μs – 3s ; 10μs – 3s
Repetition Rate — 0.2Hz – 20KHz ; 0.2Hz – 20KHz ; 0.2Hz – 20KHz

Technical Specifications - Therapy (summary)
Parameter — CP20RT / CP20DRT
Order Model — CP20RT ; CP20DRT
Wavelength — 635nm+980nm ; 635nm+810nm+980nm
Maximum Power — 500mW + 20W ; 500mW + 10W + 10W
Pilot Beam — 635nm ; 635nm
Operation Mode — CW, Repeat Pulse, IPS ; CW, Repeat Pulse, IPS
Pulse Duration — 10μs – 3s ; 10μs – 3s
Repetition Rate — 0.2Hz – 20KHz ; 0.2Hz – 20KHz

Technical Specifications - Veterinary (summary)
Parameter — CP20RV / CP20RV / CP25RV
Order Model — CP20RV ; CP20RV ; CP25RV
Wavelength — 635nm+980nm ; 635nm+810nm+980nm ; 635nm+450nm+810nm+980nm
Maximum Power — 500mW + 20W ; 500mW + 10W + 10W ; 500mW + 5W + 10W + 10W
Pilot Beam — 635nm ; 635nm ; 635nm
Operation Mode — CW, Repeat Pulse, IPS ; CW, Repeat Pulse, IPS ; CW, Repeat Pulse, IPS
Pulse Duration — 10μs – 3s ; 10μs – 3s ; 10μs – 3s
Repetition Rate — 0.2Hz – 20KHz ; 0.2Hz – 20KHz ; 0.2Hz – 20KHz

Notes
System supports continuous wave (CW) and repeat pulse operation; some therapy/veterinary variants include IPS mode. Pilot (visible) beam wavelengths indicated per model (532nm or 635nm depending on family).
