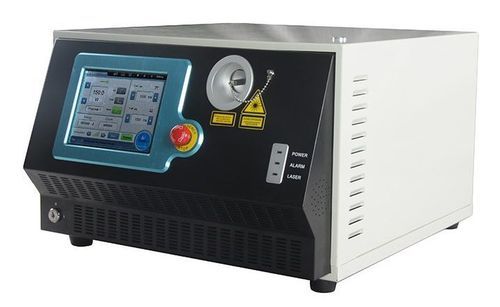

Laser per chirurgia urologica HPLASⅡ

GaAIAsdiododa tavolo

Overview
GIGAALASER combines two parallel working wavelengths of 980nm and 1470nm to introduce the HPLASⅡ for urology. HPLASⅡ operates dual wavelengths of 980nm and 1470nm running in parallel with a stated maximum output of 200W, achieving optimal absorption in water and hemoglobin which results in a high rate of ablation combined with a strong hemostatic effect. The dual laser design aims to spare internal structures of the prostate and can help prevent retrograde ejaculation in some patients. The excellent hemostatic profile minimizes blood loss during and after the procedure and promotes favorable healing and symptom relief.

Advantages

• Dual parallel working wavelengths of 980nm and 1470nm
• The new BPH probe with bare fibers contacts the tissue where it is needed and can achieve an extremely high degree of ablation
• Side-fire fiber is optional
• 12 inch color touch screen and user-friendly interface

Principle of treatment
The treatment commences by inserting a cystoscope containing the BPH probe through the urethra. The head of the bare fiber is pushed out of the probe and the dual laser of 980nm and 1470nm is discharged from the probe head. The operator steers and rotates the probe to ablate tissue in a circular motion; the funnel grows larger step by step and the BPH probe is withdrawn at the end, restoring urine flow.

Technical Specifications (table extracted)
Laser Type: GaAlAs Diode Laser
Model: HPLAS
Wavelength: 980nm+1470nm
Maximum Power: 150W+40W
Operation Mode: Continuous and pulsed
Pulse Duration: 100ms-1s
Repetition Rate: 0.5Hz-50Hz
Transmission System: 600μm~1000μm side-fire fiber or bare fiber with SMA 905 connector available, no limit
Pilot Beam: Red Diode Laser Of 635nm, Power <5mW
Control Mode: True Color Touch Screen
Voltage/Current Rating: 110/220 VAC, 5A, 50/60 Hz
Dimensions: 545(W)*540(L)*300(H) mm
Weight: 38Kg
Safety Compliance: IEC
Specifications subject to change without notice.

Caractéristiques / Spécifications techniques

• Type de laser: GaAlAs Diode Laser
• Modèle: HPLASⅡ (HPLAS)
• Longueurs d'onde: 980 nm et 1470 nm (fonctionnement parallèle)
• Puissance maximale (table): 150W + 40W ; page indique également sortie maximale 200W
• Modes d'opération: continu et pulsé
• Durée d'impulsion: 100 ms à 1 s
• Fréquence de répétition: 0,5 Hz à 50 Hz
• Système de transmission: fibres side-fire 600μm–1000μm ou fibre nue avec connecteur SMA 905
• Faisceau pilote: diode rouge 635 nm, puissance < 5 mW
• Contrôle: écran tactile couleur 12 pouces
• Tension/courant: 110/220 VAC, 5 A, 50/60 Hz
• Dimensions: 545 x 540 x 300 mm (W x L x H)
• Poids: 38 Kg
• Conformité sécurité: IEC
