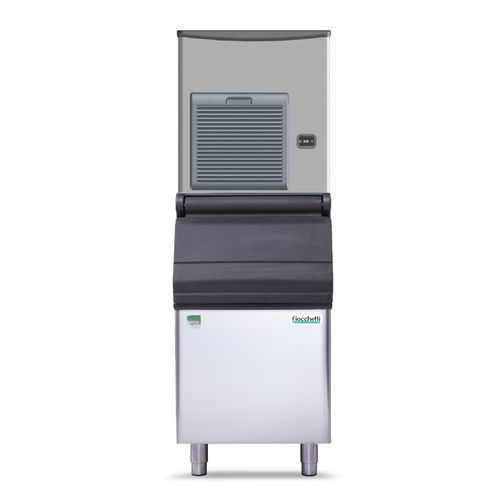

Macchina per ghiaccio fiocchi MB427A

Flake ice Maker with Storage Bin
The machine produces flake ice continuously and is designed for professional applications. Stainless steel construction with a lower storage bin that has a plastic interior with rounded corners for easy cleaning and high hygiene standards. Polyurethane foam insulation helps preserve the ice.

Funzionamento e sicurezza
The system is managed by an electronic control with self-diagnosis functions and visual alarm signals. A safety thermostat automatically stops production when the maximum level in the bin is reached. The machine integrates an automatic and continuous sanitization system. The condenser filter is front-removable to simplify routine maintenance.

Principali caratteristiche

• Production capacity nominal: 129 kg/24h
• Daily production (max reported): till 187 kg/24h
• Type of ice: Flake Ice
• External dimensions (WxDxH): 56,9 x 84,1 x 164,5 cm
• Bin capacity: 129 kg
• Electronic Controller: STANDARD (electronic control with self-diagnosis and alarm signals)
• Construction: stainless steel production unit and lower storage tank; storage bin with plastic interior and rounded corners; polyurethane foam insulation
• Access: sliding drop-down door for ice storage compartment
• Maintenance: front-removable condenser filter; includes an ice scoop

Refrigerator technical data

• Condensing: Air
• Refrigerant gas type: R290
• Energy consumption: 16 kWh/24h
• Water consumption: 8 l/h
• Fuse: 10 A
• Noise level: <70 dBA
• Water inlet temperature min/max: 5/38 °C
• Pressure (BAR) min/max: 1 / 5 bar

Accessori disponibili su richiesta

• Kit for demineralized water
• Power supply 220V/1~/60Hz
• Wooden crate package

Caratteristiche / specifiche tecniche

• Model: MB427A
• Brand: Fiocchetti
• Production capacity: 129 kg/24h (nominal); up to 187 kg/24h (reported)
• Bin capacity: 129 kg
• Type of ice: Flake ice
• External dimensions (WxDxH): 56,9 x 84,1 x 164,5 cm
• Refrigerant: R290
• Energy consumption: 16 kWh/24h
• Water consumption: 8 l/h
• Fuse: 10 A
• Noise level: <70 dBA
• Water inlet temperature: 5/38 °C
• Pressure range: 1 / 5 bar
• Construction: stainless steel; storage bin with plastic interior and rounded corners; polyurethane foam insulation
• Controls: electronic controller with self-diagnosis and alarm signals
• Safety: thermostat stops production at maximum bin level
• Sanitization: automatic and continuous sanitization system integrated
• Maintenance: front-removable condenser filter; included ice scoop
