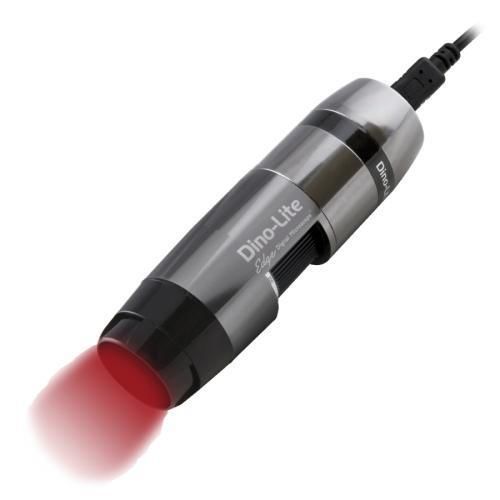

Videomicroscopio digitale AM4517MT-DFRW

biologicoda laboratorioper scienze della vita

Descrizione
Rileva emissioni di fluorescenza rosso profondo e vicino all'infrarosso (NIR) con il microscopio digitale ad alta sensibilità AM4517MT-DFRW. Con ingrandimento da 20x a 220x, illuminazione di eccitazione a 620 nm e filtro di emissione 655 nm ~ 950 nm, cattura segnali da sonde come CY5, Alexa Fluor 647 e Qdot 655. La Lettura Automatica dell'Ingrandimento (AMR) semplifica misurazioni e documentazione.

Caratteristiche principali

• 1.3 Megapixel CMOS (1280x960)
• Imaging ad alta sensibilità per fluorescenza deep-red / NIR
• Gamma di ingrandimento: 20x–220x
• Luce bianca LED commutabile
• Automatic Magnification Readout (AMR)
• Scocca metallica

Optical Data Table
Intestazione: Ingrandimento | Distanza di lavoro * (mm) | Campo visivo (x) (mm) | Campo visivo (y) (mm) | Profondità di campo (mm)
20x | 60.4 | 19.53 | 14.65 | 6.34
30x | 33.7 | 13.02 | 9.77 | 3.03
40x | 21.1 | 9.77 | 7.33 | 1.82
50x | 14.1 | 7.81 | 5.86 | 1.24
60x | 9.9 | 6.51 | 4.88 | 0.91
70x | 7.3 | 5.58 | 4.19 | 0.71
80x | 5.7 | 4.88 | 3.66 | 0.57
90x | 4.8 | 4.34 | 3.26 | 0.47
100x | 4.3 | 3.91 | 2.93 | 0.40
110x | 4.2 | 3.55 | 2.66 | 0.35
120x | 4.3 | 3.26 | 2.44 | 0.31
130x | 4.7 | 3.01 | 2.25 | 0.27
140x | 5.2 | 2.79 | 2.09 | 0.24
150x | 5.8 | 2.60 | 1.95 | 0.22
160x | 6.5 | 2.44 | 1.83 | 0.20
170x | 7.3 | 2.30 | 1.72 | 0.18
180x | 8.2 | 2.17 | 1.63 | 0.17
190x | 9.1 | 2.06 | 1.54 | 0.16
200x | 10.1 | 1.95 | 1.47 | 0.15
210x | 11.1 | 1.86 | 1.40 | 0.14
220x | 12.1 | 1.78 | 1.33 | 0.13

Caratteristiche / Specifiche tecniche

• Lighting: Light/LED type: 620 nm excitation + white
• Lighting: Number of LEDs: 7 FL + 1 White
• Lighting: LED on/off switchable: Yes
• Lighting: Infrared filter: No
• Lighting: Diffuser available: No
• Lighting: Emission filter: 655 nm ~ 950 nm
• Lighting: Polarizer: No
• Lighting: Fluorophores: Y5, Alexa Fluor 647, and Qdot 655
• Optics: Magnification: 20x ~ 220x
• Optics: Macro zoom: No
• Optics: Working distance: Standard
• Optics: Lens type: Glass with anti-reflection coating
• Sensor: Sensor type: CMOS
• Sensor: Resolution: 1.3 Megapixel (1280x960)
• Sensor: Maximum frame rate: 30 fps
• Compatibility: Interface: USB 2.0
• Compatibility: Operating system: Windows 7, 8, 10 & 11, MacOS 10.9 and up
• Compatibility: Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
• Compatibility: Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
• Compatibility: Supported video formats (Windows): WMV, FLV, SWF
• Compatibility: Supported image formats (MacOS): JPEG, PNG
• Compatibility: Supported video formats (MacOS): MOV
• Housing: Housing material: Metal housing
• Housing: Magnification lock: Yes
• Housing: Dimensions: 104 mm (H) x 32 mm (D)
• Housing: Weight: 90g
• Housing: Cable length: 1.8m
• Features: Special feature: Automatic Magnification Readout (AMR)
• Features: Measurement: Yes
• Features: Calibration: Yes
• Features: Microtouch sensor: Yes
• Information: Package contents: Microscope, carry pouch, calibration target, user manual, N3C-C (Close Cap), N3C-EB (Extended Open Black Cap), N3C-LB (Black Long Cap), N3C-OB (Black Open Cap)
• Information: Warranty information: 2 years European warranty
• Information: Regulatory approval: CE, FCC, ROHS
• Information: Price range: €1100,00 - €1300,00
